High Frequency Electromagnetic Induction Heating Generator
Advanced high-frequency induction heating system designed for steel bar processing and metal & metallurgy machinery applications.
Key Characteristics
- Advanced IGBT inverting technology with automatic frequency tracking
- High-frequency heating with rapid operation - consumes only 20-30% of traditional electronic tube induction heating systems
- Secure voltage operation with enhanced safety features
- Manual and automatic regulation with comprehensive protection against over-voltage, over-current, water deficiency, phase failure, and overheating
- Environmentally friendly operation - no open flame, noise, or pollution emissions
- Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing processes
Advanced Technology Features
Our high-frequency induction heating machines incorporate state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. The technology enables non-contact heating through non-metallic materials until metal fusion occurs, providing safe, economical, and pollution-free technical solutions.
Operational Advantages
Portable Design
Integrated construction saves over 80% space and 75% weight compared to traditional transformers. Monolithic shell design with resistance to weak acids and alkalis.
Complex Metal Heating
Hand-held machine head with amorphous magnetic core material provides wider frequency range and superior heating for irregular shaped workpieces.
Efficient Operation
Rapid heating within 8 seconds, intelligent operation with stable magnetic field output for consistent long-term performance. Ideal for copper pipe welding and complex transformer applications.
Technical Specifications
| Model 型号 |
YYSQ-TC-120AB (Three phase) |
| Work power 电压 |
340V-430V |
| Maximum input current 最大输入电流 |
180A |
| Output power 输出功率 |
120KW |
| Fluctuating frequency 震荡频率 |
5-20KHZ |
| Output current 输出电流 |
400-4500A |
| The flow rate of cooling water 水压水流 |
0.08-0.16Mpa 12L/Min |
| Water temperature protection point 水温保护点 |
50°C |
| Product size 尺寸 |
main: 770*550*1510MM
transformer: 950*420*770MM |
| Net weight 净重 |
main: 145kg
transformer: 108kg |
Industrial Applications
- Brazing Materials: Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper, and other metal brazing applications
- Welding: Glasses, fishing tools, hardware appliances, carbide saws and teeth, carbide blades, jewelry, watches
- Electronic Industry: Motor rotor hot-cooperation, electrode silver and tin soldering
- Specialized Applications: Metal implants, bulb electrode fabrication, band accessories, golf heads, pipe welding
- Communication Equipment: Copper coaxial cable connector soldering and related applications

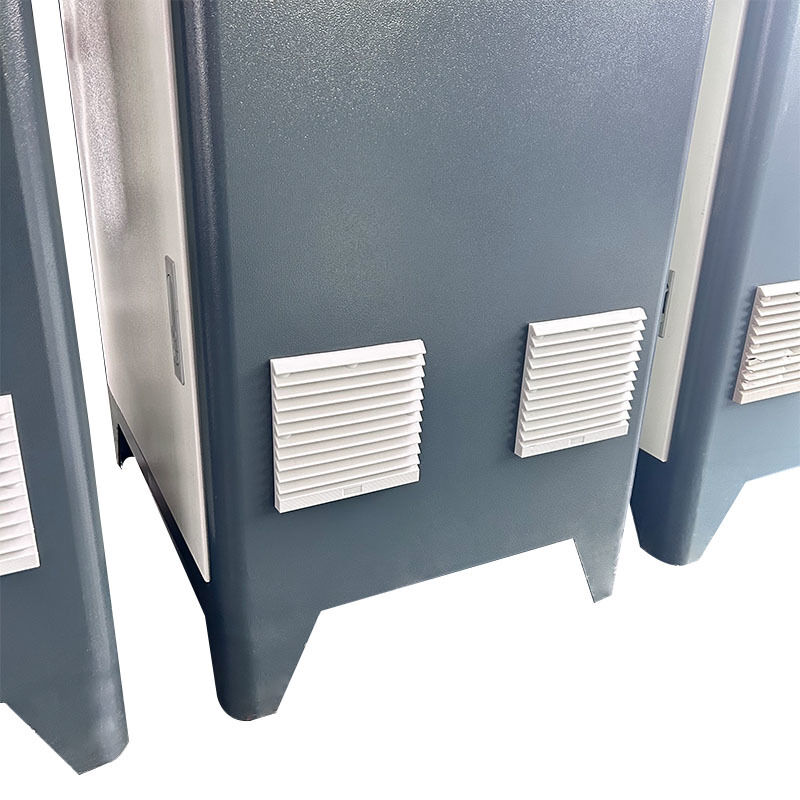

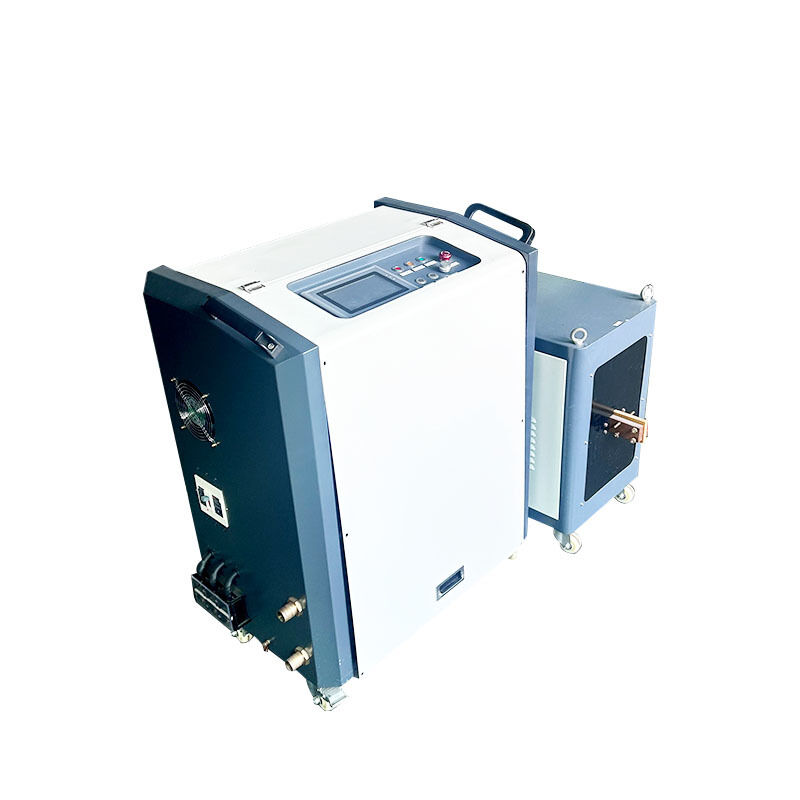

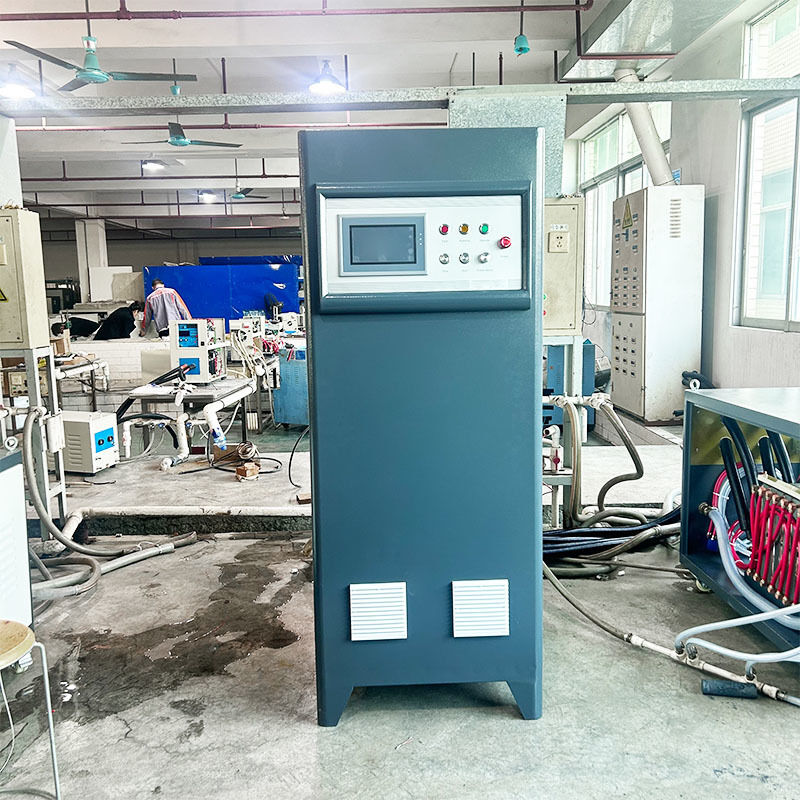

Product Images
