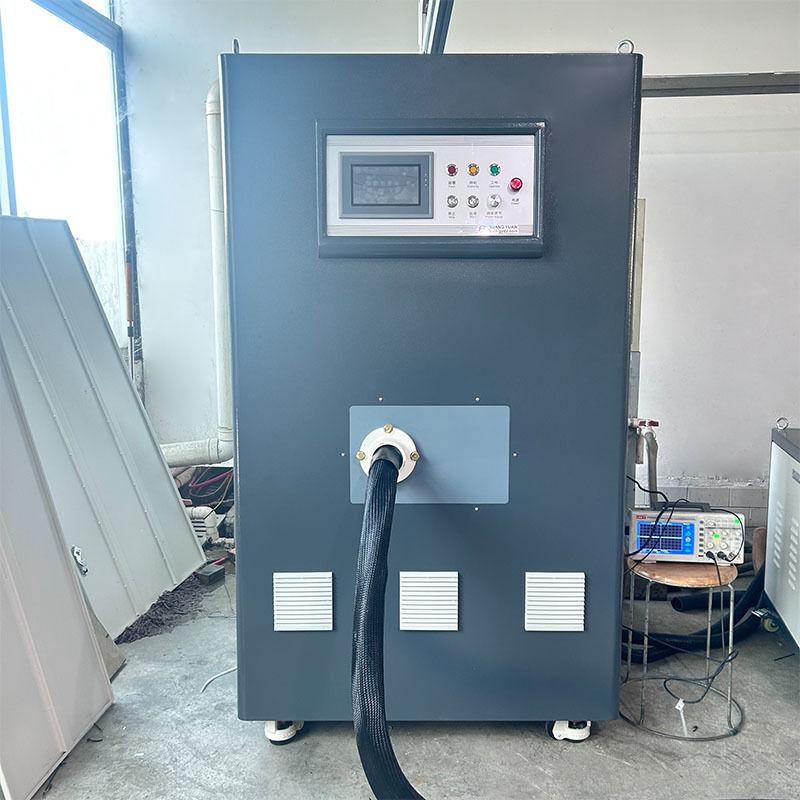

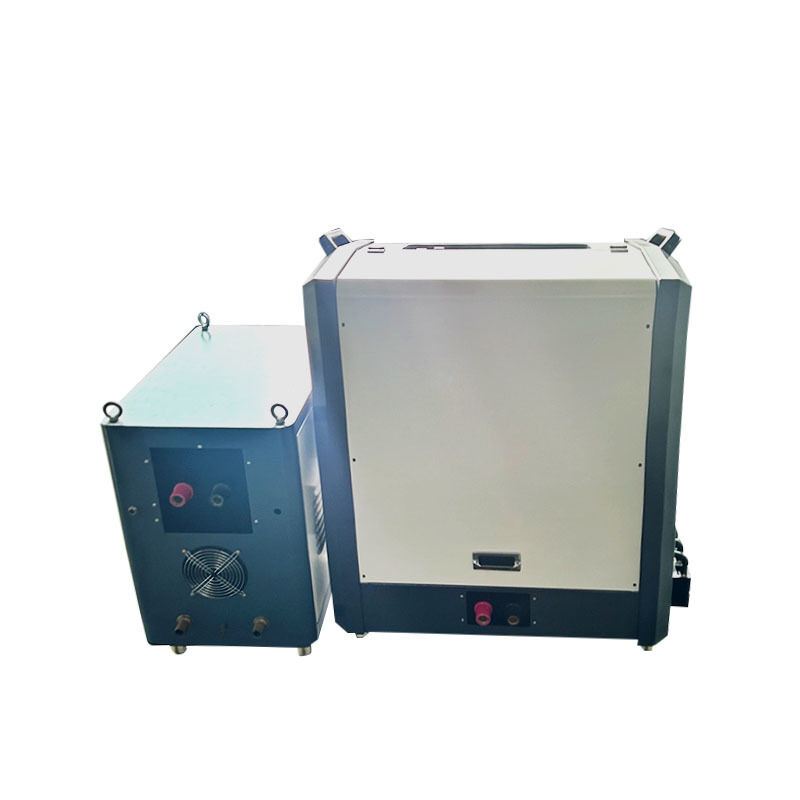

Portable 35kw High Frequency Induction Heating Machine
New condition induction heating machine specifically designed for stainless steel processing applications.
Key Characteristics
- Advanced IGBT inverting technology with automatic frequency tracking
- High-frequency heating with rapid operation - consumes only 20-30% of traditional electronic tube induction heating systems
- Secure voltage operation with enhanced safety features
- Manual and automatic regulation with comprehensive protection against over-voltage, over-current, water deficiency, phase failure, and overheating
- Environmentally friendly operation - no open flame, noise, or pollution emissions
- Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing processes
Advanced Features
Our high-frequency induction heating machines incorporate state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. The technology enables non-contact heating through non-metallic materials until metal fusion occurs, providing safe, economical, and pollution-free technical solutions.
Operational Advantages
Portable Design: Integrated construction saves over 80% space and 75% weight compared to traditional transformers. Monolithic shell design with resistance to weak acids and alkalis.

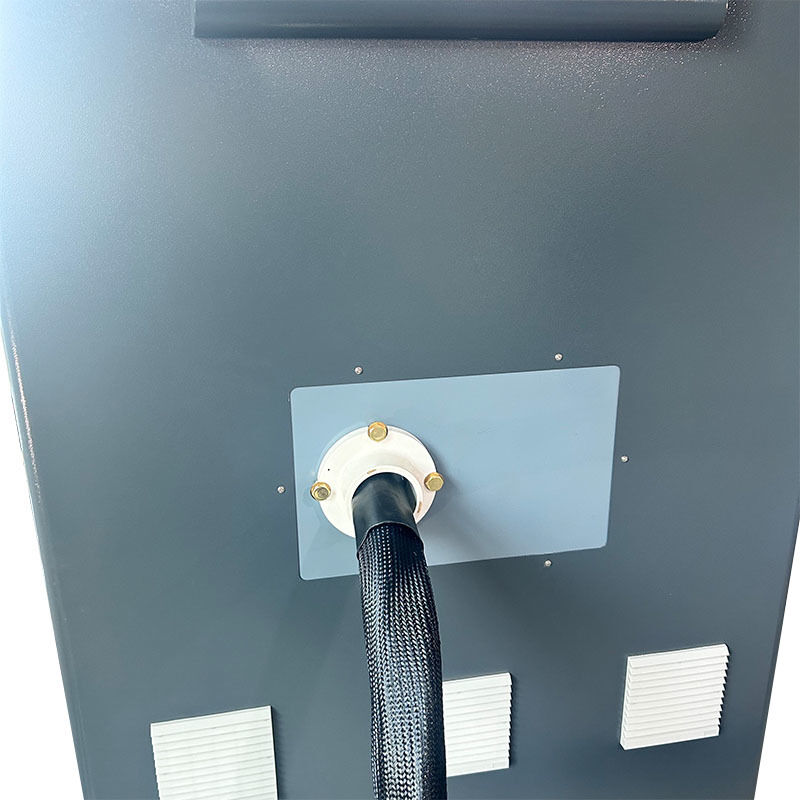

Complex Metal Heating: Hand-held machine head with amorphous magnetic core material provides wider frequency range and superior heating for irregular shaped workpieces.
Efficient Operation: Rapid heating within 8 seconds, intelligent operation with stable magnetic field output for consistent long-term performance. Ideal for copper pipe welding and complex transformer applications.
Technical Specifications
| Model | YYSQ-TC-60AB (Three phase) |
|---|
| Work power | 340V-430V |
|---|
| Maximum input current | 90A |
|---|
| Output power | 60KW |
|---|
| Fluctuating frequency | 5-20KHZ |
|---|
| Output current | 400-4500A |
|---|
| The flow rate of cooling water | 0.08-0.16Mpa 12L/Min |
|---|
| Water temperature protection point | 50°C |
|---|
| Product size | Main: 808*530*1260MM
Multiple Connect transformer: 620*520*630MM |
|---|
| Net weight | Main: 102kg
Multiple Connect transformer: 91kg |
|---|
Industrial Applications
Brazing Materials: Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper, and other metal brazing applications
Welding: Glasses, fishing tools, hardware appliances, carbide saws and teeth, carbide blades, jewelry, watches
Electronic Industry: Motor rotor hot-cooperation, electrode silver and tin soldering
Specialized Applications: Metal implants, bulb electrode fabrication, band accessories, golf heads, pipe welding
Communication Equipment: Copper coaxial cable connector soldering and related applications
