Luogo di origine:
Cina
Marca:
YUYANG
Certificazione:
CE
Numero di modello:
YYF052

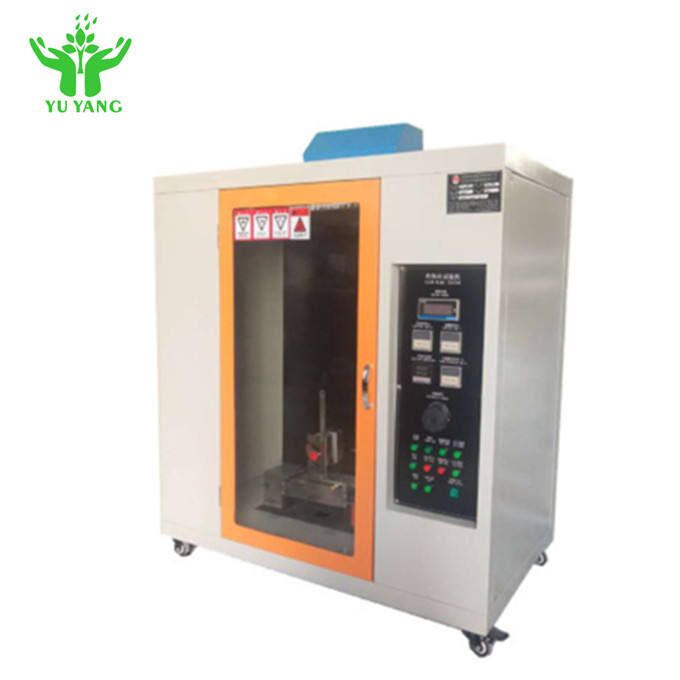

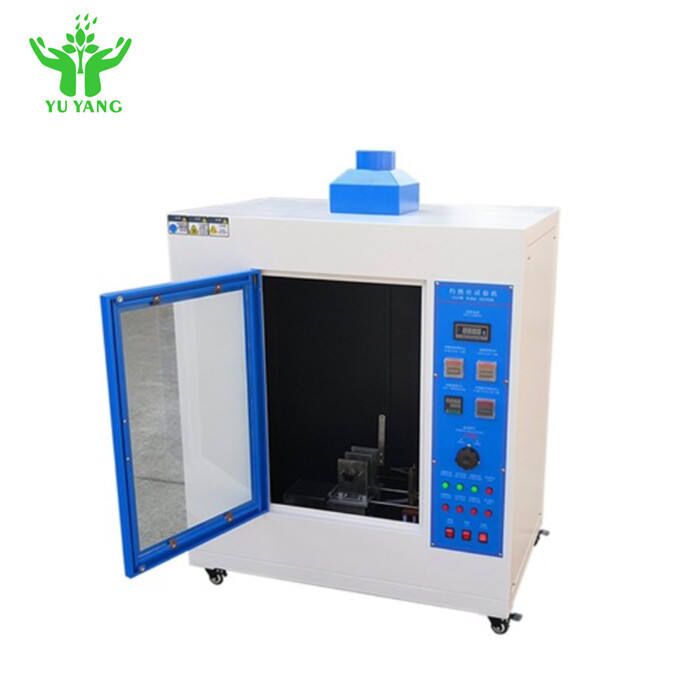

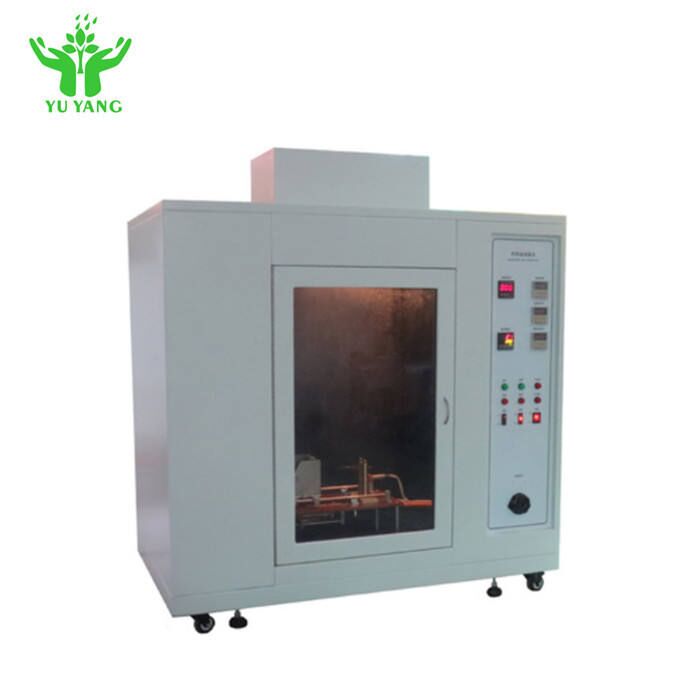

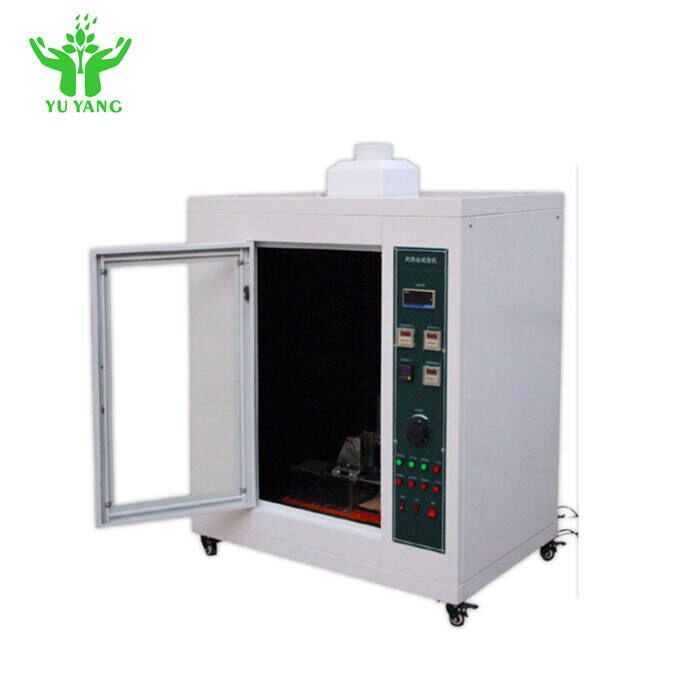

The glow wire testing machine is commonly used for electrical engineering components and solid electrical insulation materials or other solid combustible materials. This equipment conforms to GB/T516910-13, EC60695-2-10-2-1/3, GB2099, VDE0620, GB4706 and UL817 test standards.
Test method: The standard resistance wire ring is heated to the specified temperature, and then the hot wire and test sample are contacted with plug socket rubber plastic and other products under the test conditions.
| Warranty | 1 year |
| Certification | IECEE, CE |
| Customized support | OEM, ODM, OBM |
| Place of Origin | China |
| Brand Name | YUYANG |
| Model Number | YYF052 |
| Power | Electronic |
| Pressure | 0.95N±0.1N |
| Max Depth | 7mm ± 0.5mm |
| Sample Moving Speed | 10mm/s ~ 25mm/s |
| Test Volume | ≥ 0.5m³ |
| Dimension | W 1250mm × D 600mm × H 1150mm |
| Power Supply | 220V 50Hz |
| Weight | 90kg |
