Name: YY-121 Building Materials Difficult Flammability Test Equipment
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY121
Price: 25,000.00 USD
Availability: InStock

Casa. > prodotti > Apparecchiatura di collaudo di infiammabilità >

YY-121 Building Materials Difficult Flammability Test Equipment

flammability test equipment for building materials

difficult flammability testing equipment

building materials flammability tester

Luogo di origine:

Cina

Marca:

YUYANG

Certificazione:

Numero di modello:

YY121

Contattaci

Richieda una citazione

YY-121 Building Materials Difficult Flammability Test Equipment

Dettagli del prodotto

Contatore di flusso:

Metano: 5 ~ 45L/min regolabile, aria: 3 ~ 30L/min regolabile, livello di precisione: 2,5 grado

Alimentazione elettrica:

380 V CA 50Hz usando gas: metano (purezza oltre il 95%)

Termocoppia:

Diametro di 3,0 mm e termocoppia corazzata da 1,5 mm

Diametro dell'ugello del bruciatore:

3,5 mm, dimensioni: 200 x 200 (mm) dalla parte inferiore di 1000 mm

Fonte di gas:

> 95% di gas propano; （L'utente dovrebbe provvedere a se stesso）

Pressione del gas:

10kpa~50kpa

Evidenziare:

flammability test equipment for building materials

difficult flammability testing equipment

building materials flammability tester

Termini di pagamento e di spedizione

Quantità di ordine minimo

Set/Set

Prezzo

pending

Tempi di consegna

Termini di pagamento

L/c, t/t

Capacità di alimentazione

Prodotti correlati

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Ottieni il miglior prezzo

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

Ottieni il miglior prezzo

YY-121 Building Materials Difficult Flammability Test Equipment

Ottieni il miglior prezzo

Video

Classe II A2 Armadio di sicurezza biologica con profondità di 780 mm

Ottieni il miglior prezzo

Contattaci

86-769-26622869

Contattaci ora

Descrizione del prodotto

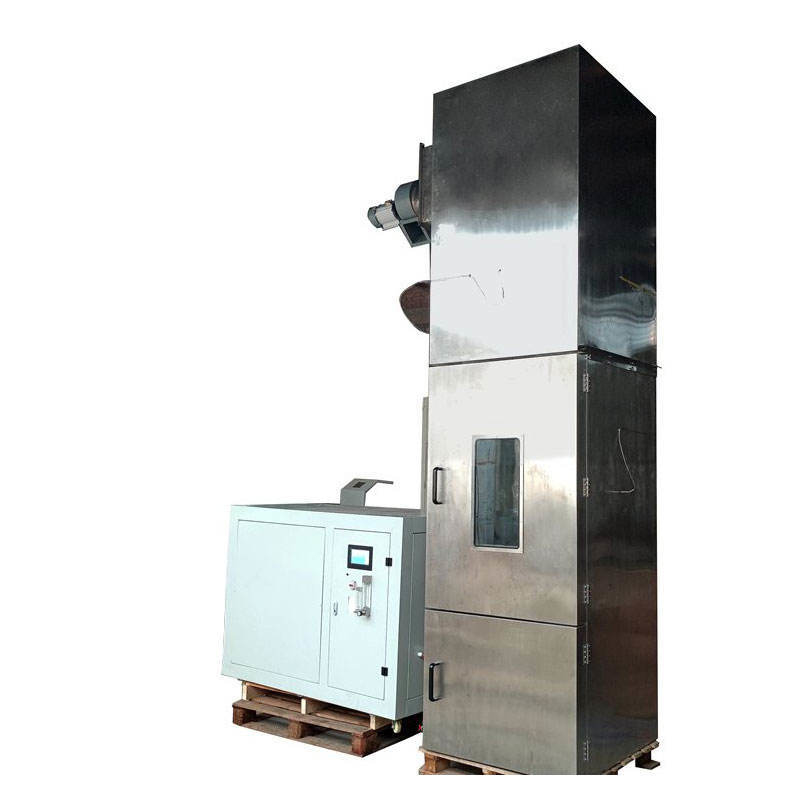

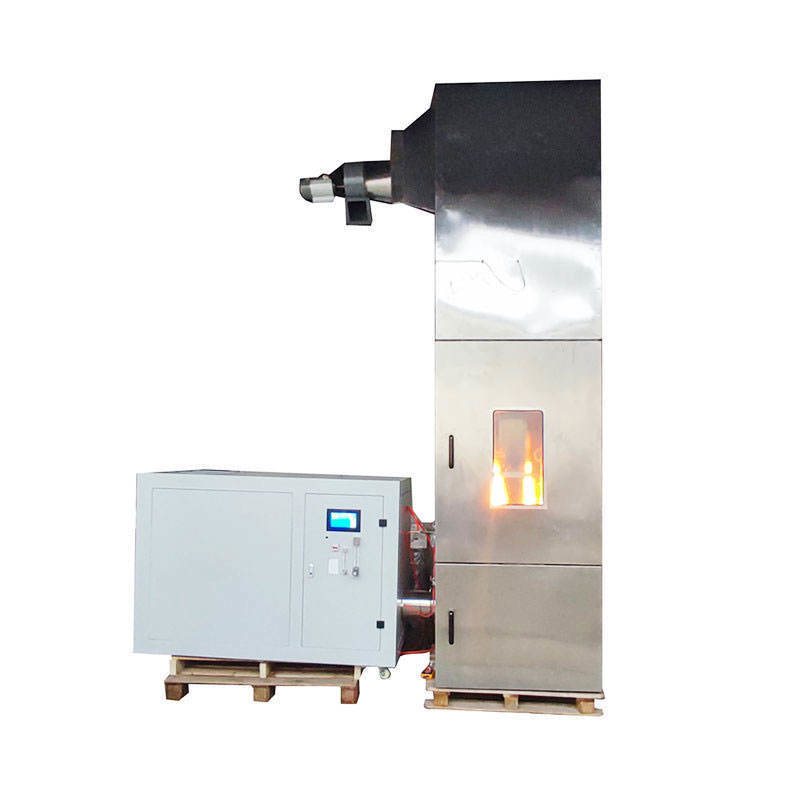

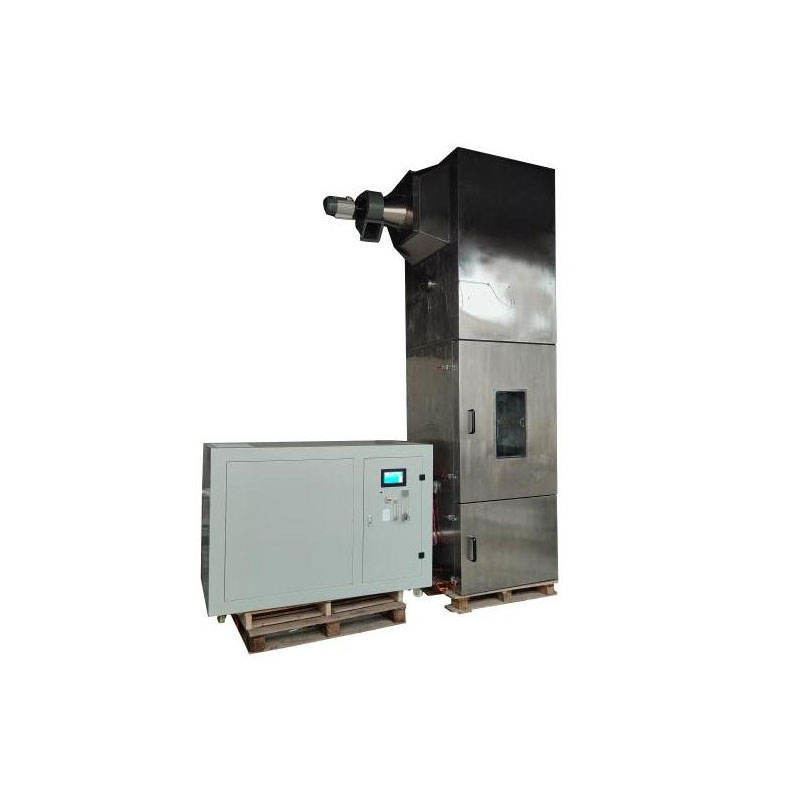

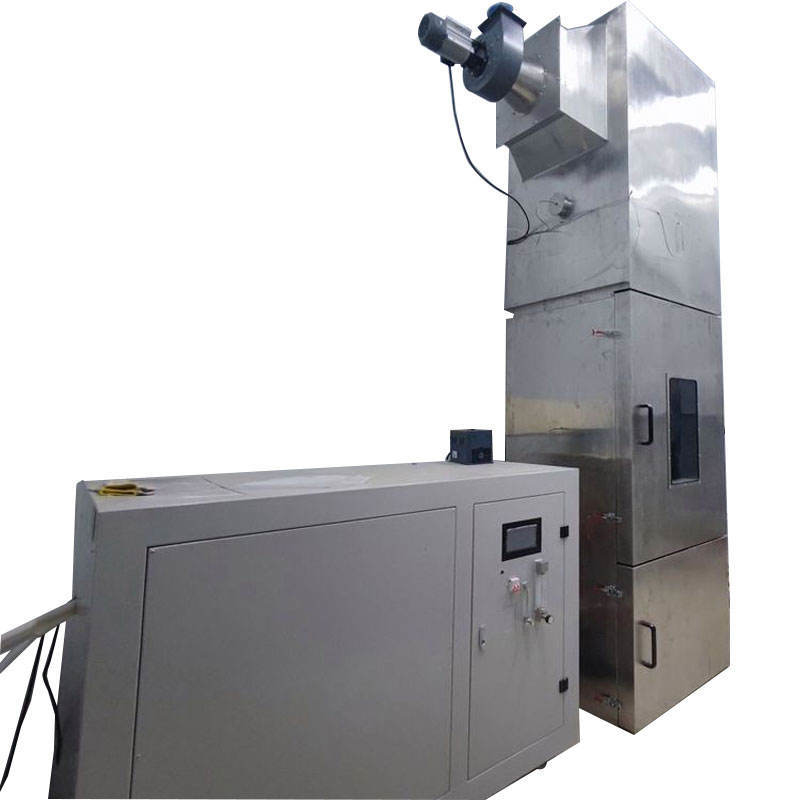

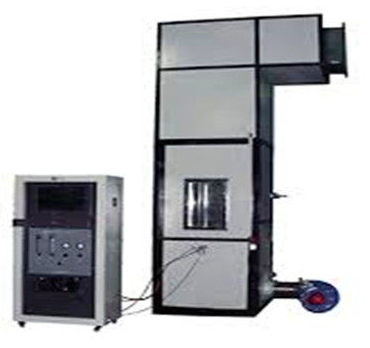

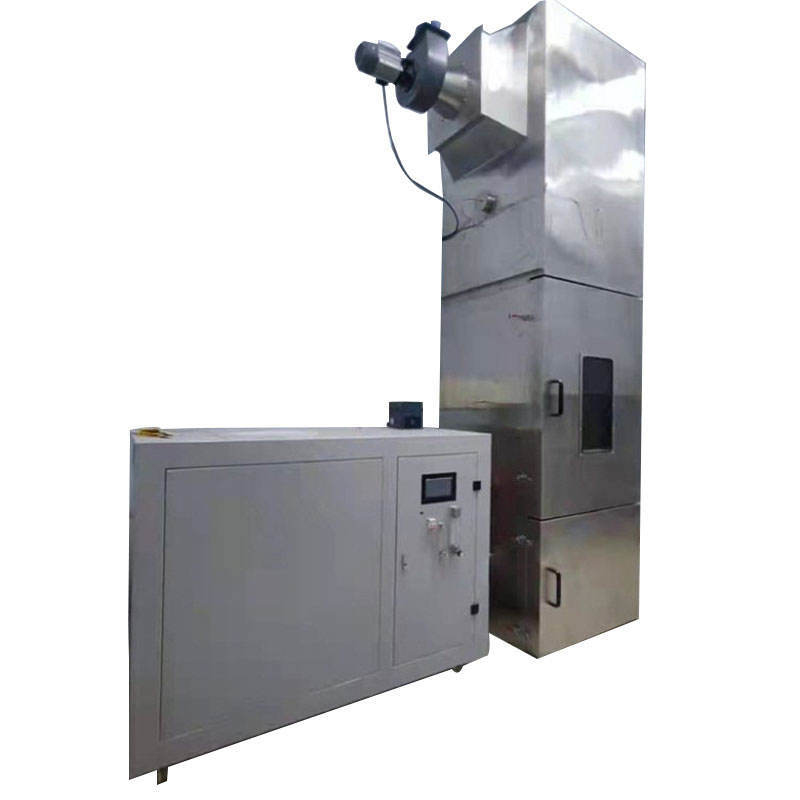

YY-121 Building Materials Difficult Flammability Test Equipment

The YY-121 Building Materials Difficult Flammability Test Apparatus is designed for flame retardant performance testing of building materials. This computer-controlled equipment offers high automation for accurate fire resistance performance evaluation.

Compliance Standards

GB/T 8625 Test method of difficult-flammability for building materials
DIN 4102-15 Fire behavior of building materials and elements Brandschach

Key Features

Complete burning shaft furnace system including combustion chamber, burner, specimen support, air current stabilizer, and flue
Computer-controlled operation for precise furnace temperature and pressure management
High degree of automation for consistent test results

Working Principle

The testing process begins with four conditioned specimens vertically fixed on the test bracket, forming a vertical square flue. The specimens are positioned at (250±2) mm intervals. A uniform airflow is created in the combustion chamber through a 200mm diameter pipeline, maintaining a constant rate of (10±1) m³/min at controlled temperature.

Gas flow is adjusted to (35±0.5) L/min and air flow to (17.5±0.2) L/min before automatic ignition. The 10-minute test concludes when either the average flue gas temperature exceeds 200°C across five thermocouples or the maximum measured value surpasses 200°C.

Technical Parameters

Parameter	Specification
Power supply	380V AC 50HZ
Gas requirement	Methane (purity > 95%)
Flow meter range	Methane: 5-45L/min, Air: 3-30L/min (2.5 grade precision)
Specimen size	190 x 1000mm (four specimens per test, thickness ≤80mm)
Thermocouple	3.0mm diameter and 1.5mm armored thermocouple
Burner specifications	Nozzle diameter: 3.5mm, dimensions: 200 x 200mm (positioned 1000mm from bottom)
Combustion furnace dimensions	1020 x 1020 x 3930mm (external), 800 x 800 x 2000mm (internal)
Weight	1 ton
