Name: 200KG Touch Screen Single Column Tensile Testing Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: Fabbricazione
Price: 2,502.00 USD
Availability: InStock

Casa. > prodotti > apparecchiatura di collaudo del tessuto >

200KG Touch Screen Single Column Tensile Testing Machine

200kg tensile testing machine

touch screen textile testing equipment

single column tensile strength tester

Luogo di origine:

Cina

Marca:

YUYANG

Certificazione:

Numero di modello:

Fabbricazione

Contattaci

Richieda una citazione

200KG Touch Screen Single Column Tensile Testing Machine

Dettagli del prodotto

Opzione di capacità::

200 kg

Accuratezza di misura::

± 1%

Risoluzione:

1/200000

velocità di prova::

0 ~ 300 mm/min

Colpo effettivo:

600 mm

Spazio di Prova::

120 millimetri

Unità di forza:

kgf, gf, N, kN, lbf

Fonte di energia:

PH, AC220V, 50/60Hz

Forza Dinamica:

motore a velocità variabile

Evidenziare:

200kg tensile testing machine

touch screen textile testing equipment

single column tensile strength tester

Termini di pagamento e di spedizione

Quantità di ordine minimo

Metta/insiemi

Prezzo

Pending

Termini di pagamento

L/c, t/t

Capacità di alimentazione

Prodotti correlati

Video

High Precision Sensitivity Automatic Industrial Metal Detector Machine for Food Meat Vegetables Fish

Ottieni il miglior prezzo

Video

Highly Sensitive Textile Testing Equipment for Metal Detection in Food and Medicine

Ottieni il miglior prezzo

Video

Advanced Technology Textile Testing Equipment for Detecting Metals in Moisture and Frozen Products

Ottieni il miglior prezzo

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

Ottieni il miglior prezzo

Contattaci

86-769-26622869

Contattaci ora

Descrizione del prodotto

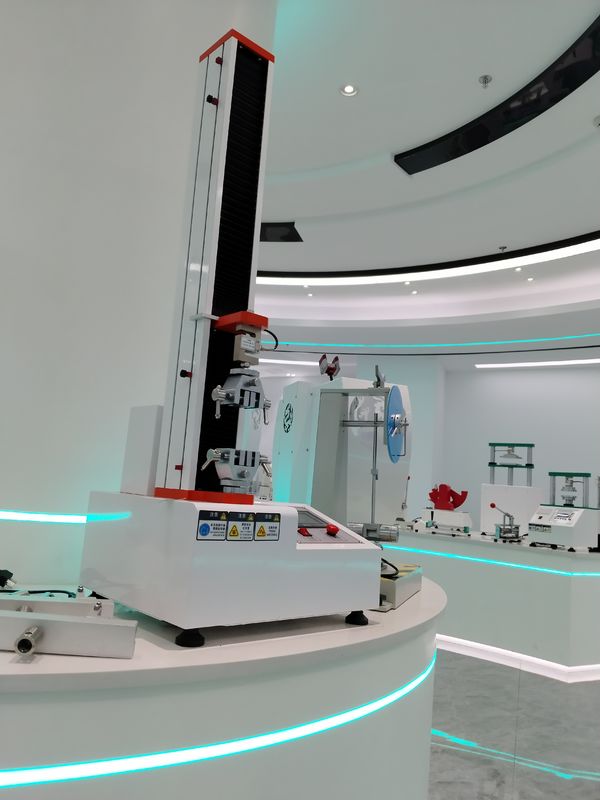

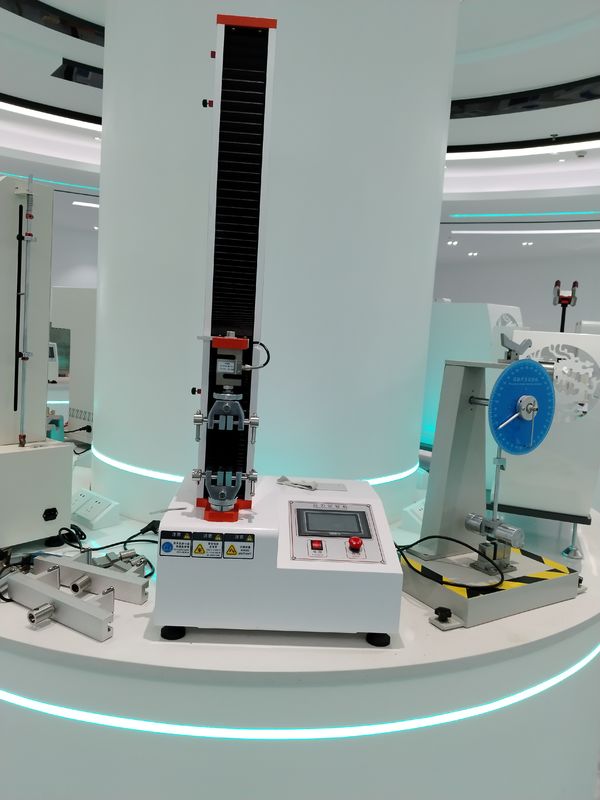

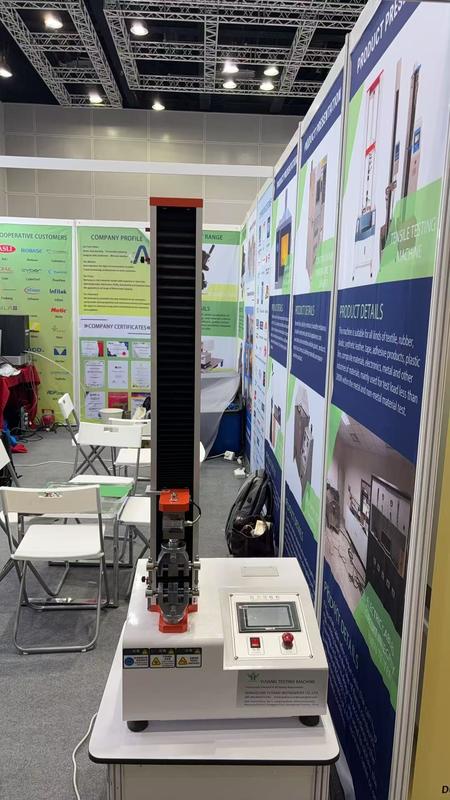

200KG Touch Screen Single Column Tensile Testing Machine

Technical Specifications

Attribute	Value
Capacity Option:	200kg
Measurement Accuracy:	±1 %
Resolution	1/200000
Test Speed:	0 ~ 300 mm/min
Effective Stroke	600 mm
Test Space:	120 mm
Force Unit	kgf, gf, N, kN, lbf
Power Source	PH, AC220V, 50/60Hz
Dynamic Force	speed regulating motor

Product Overview

The Touch Screen Single Column Tensile Testing Machine is designed for evaluating material properties under static load conditions, including tensile, compression, bending, peel, and pulling tests.

Applications

Widely used for testing plastic plates, pipes, rubber, wire and cable materials
Essential for physical properties testing, teaching, research, and quality control
Suitable for testing tensile strength, peeling strength, deformation rate, breaking force, and other performance metrics
Ideal for plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, and paper fiber products

Industry Applications

This testing machine serves multiple industries including tape manufacturing, automotive, ceramics, composites, construction, food processing, medical equipment, metalworking, paper production, packaging, rubber processing, textiles, woodworking, communications, and various specialized materials.

Compliance Standards

Meets ASTM D903, F2258, GB/T 2790/2791/2792, CNS-11888, JIS K6854, GB/T 6329, BS EN 14410-2003, YY/T 0729, GOST 21751 and other relevant standards.

Product Images
